The Complete Home Golf Simulator Planning Guide for Arizona Homes

A great home golf simulator starts with the room—not the launch monitor, projector, or software. If the space cannot accommodate the tallest golfer’s full driver swing, the screen’s safety clearances, and the chosen tracking technology, expensive components will not rescue the design. In an Arizona home, the plan must also account for garage heat, fine dust, strong daylight, power, networking, and the way all of those systems will work together.

This guide walks through the decisions in the order they should be made: verify the room, define who will use it, select the tracking approach, engineer the image and enclosure, and then coordinate climate, lighting, audio, networking, and control. The goal is not simply to create a place where a ball can be hit. It is to create a safe, comfortable, accurate, and easy-to-use golf simulator room.

Is the room viable for a home golf simulator?

The fastest answer is not a tape-measure reading by itself. A room is viable only when three tests pass together:

1. Swing test: every intended golfer can make an unrestricted swing with the longest club they will use.
2. Equipment test: the selected launch monitor, screen, enclosure, projector, and hitting surface fit within their manufacturer-specified geometry.
3. Room-use test: doors, walkways, seating, storage, mechanical systems, and safe exits still function after the simulator is installed.

Start by deciding who and what the room must support. Will it be used only by one right-handed golfer, or by right- and left-handed family members? Is it a practice bay, a social space for a foursome, or a multipurpose media room? Will players use a driver and high-lofted wedges? Does the launch monitor need to travel outdoors? The answers change the required width, depth, mounting location, seating plan, and technology.

Then test the actual swing. Use the tallest golfer and the longest club. Begin slowly in an empty, well-lit space, with another person watching the club’s full path. Test the backswing, downswing, and follow-through from the intended hitting position. A ceiling that looks high enough from the doorway can still have a low beam, track, opener, fixture, or projector in the swing envelope.

Do not use a generic room-size chart as permission to swing in a questionable space. The golfer’s build and swing plane vary, and manufacturer requirements differ. Published dimensions are useful for planning, but an on-site swing and equipment assessment is the decision point.

Home golf simulator room dimensions: height, width, and depth

For a comfortable starting benchmark, Carl’s Place recommends approximately 10 feet of ceiling height, 14 feet of width, and 18 feet of depth. Its guidance also describes smaller installations, including offset hitting areas, but emphasizes that the golfer and equipment must fit the actual space.

Ceiling height: measure the swing envelope

Measure from the finished hitting surface—not the bare slab—to the lowest object above or near the swing. Turf, a hitting mat, or a raised platform reduces usable height. The same is true of an overhead sensor or projector hanging below the ceiling.

Eight or nine feet may work for some golfers and limited club selections, but it should never be assumed. Carl’s Place describes 8–9 feet as a limited range dependent on the golfer, club, and swing, while 10 feet or more is the more comfortable recommendation. Overhead launch monitors impose their own mounting ranges; for example, the current Uneekor EYE XO2 manual specifies a 9- to 10-foot sensor height and a defined position relative to the tee. The exact manual for the selected model must control the design.

Width: centered or offset hitting

A wider bay allows the ball to sit near the screen centerline and gives right- and left-handed golfers room to use the same hitting area. In a narrower room, a right-handed golfer may need an offset hitting position to protect the club path from the wall behind them. That can work, but the projected image, launch-monitor alignment, hitting strip, and software target line must all be coordinated around the offset.

If both handednesses will use the room, do not assume a portable floor unit can simply remain in place. Some devices need to be moved from one side of the ball to the other; some overhead systems provide a larger shared hitting zone; and some radar systems sit behind the ball. Decide this before selecting the enclosure width or cutting the hitting surface.

Depth: more than tee-to-screen distance

Room depth must include the impact screen’s required backspace, the enclosure, ball flight between the tee and screen, the golfer, any rear-positioned launch monitor, and circulation or seating behind the hitting area. Carl’s Place advises users to account for the actual enclosure fittings and screen buffer—not merely the listed screen size.

Model-specific requirements can vary substantially. As examples, Garmin’s Approach R10 indoor guidance calls for at least 15 feet of room length, with the unit 6–8 feet behind the ball and the ball at least 8 feet from the screen or net. TrackMan 4’s simulator guidance specifies different minimum and optimal distances, including space behind the impact screen. These are examples of why the launch monitor must be selected before the room geometry is finalized.

A room-measurement worksheet

Record each of the following before equipment is ordered. Photos and a sketch are useful, but they do not replace physical measurements.

Planning a garage golf simulator for Arizona heat and dust

A garage can provide the width and depth a simulator needs, but Phoenix conditions make it a room-conversion project—not merely an equipment installation. The National Weather Service’s 1991–2020 averages show that Phoenix typically reaches 100°F from early May into early October. An unconditioned garage can be uncomfortable for players and may fall outside the operating range of projectors, computers, batteries, displays, and launch monitors.

Design the room around the published temperature and ventilation requirements of every selected component. Climate work may involve insulation, air sealing, a properly sized HVAC solution, equipment ventilation, and automated comfort controls that bring the room to a usable condition before play. HVAC design should be handled by a qualified professional, and it should not direct a strong air stream onto a moving impact screen.

Dust deserves equal attention. Maricopa County monitors high PM₁₀ levels during dust events, and fine particles can settle on projector optics, computer intakes, sensors, connectors, and screen material. A practical design may include conditioned and filtered air, sealed cable entries, closed equipment cabinetry with engineered ventilation, electronics located off the floor, and a maintenance plan that follows each manufacturer’s cleaning instructions. Close exterior doors during dust events and avoid improvised compressed-air cleaning on sensitive optics.

A Phoenix garage scenario

Consider a hypothetical third-car garage that appears large enough on paper. The slab-to-ceiling height is 10 feet 3 inches, but the door opener hangs at 8 feet 10 inches over the proposed hitting area. Afternoon sunlight enters through the garage windows, the network signal is weak, and the room has no dedicated climate control.

The correct response is not to order a smaller screen and hope. The design team should first map the swing envelope, garage-door travel, opener and track options, safe egress, and the exact launch-monitor location. Then it can coordinate light control, a conditioned environment, permanent electrical and network paths, and projector placement. Only after those constraints are resolved should the enclosure be sized. A garage-door professional, HVAC contractor, electrician, and technology integrator may all have defined roles in the finished room.

The home golf simulator components that must work together

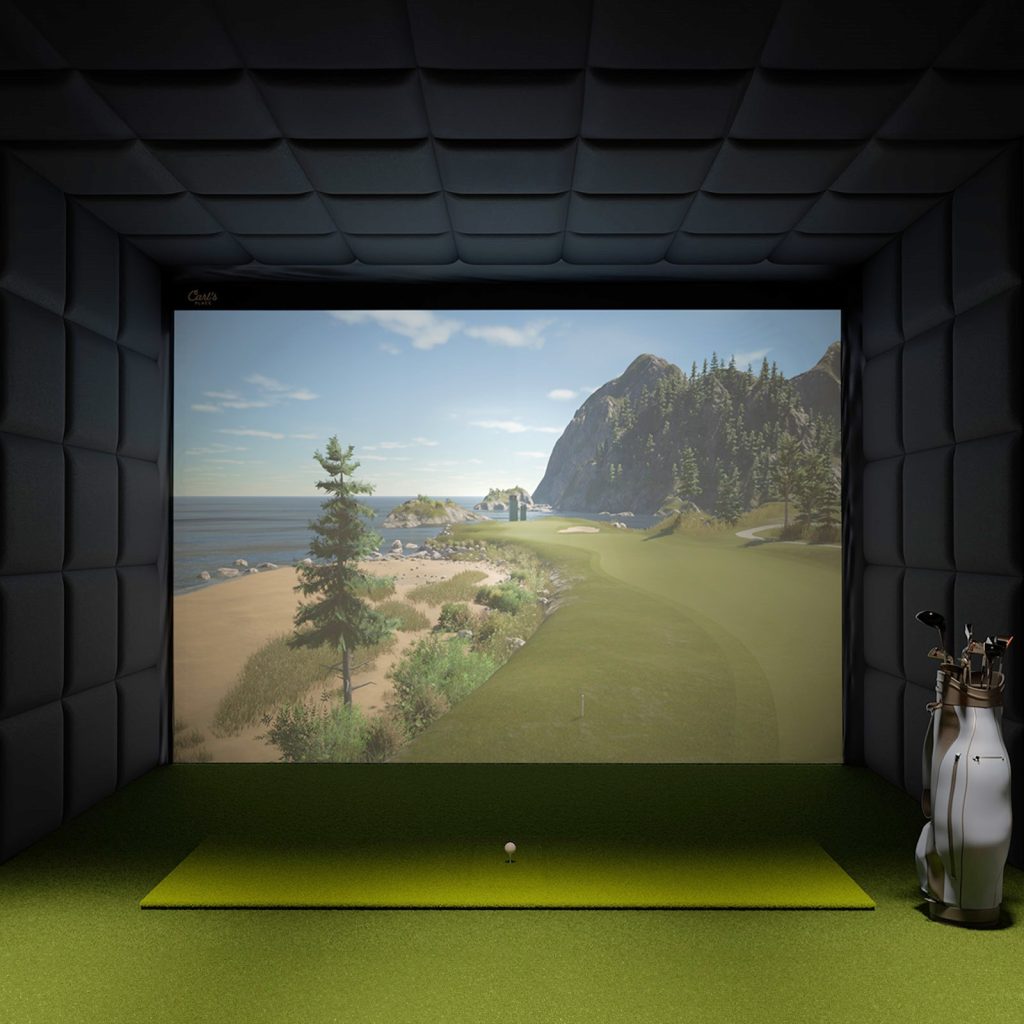

1. Impact screen, enclosure, and room protection

The impact screen is both a projection surface and a safety component. Its viewable image size is not the same as the screen’s total finished size or the enclosure’s outside dimensions. Frame fittings, fabric, side protection, ceiling protection, padding, and the required distance behind the screen all consume space.

Plan for errant shots and high-lofted wedges—not only a centered driver shot. Exposed frame sections and nearby hard surfaces should be protected according to the enclosure manufacturer’s instructions. Screen tension must balance image quality with safe impact behavior; an overtightened or improperly spaced screen can increase bounce-back. Use clean, undamaged golf balls, because marked or cut balls can transfer material to the screen or damage it.

Camelback Smart Homes works with Carl’s Place golf simulator systems, including enclosure and built-in room approaches. The correct choice depends on whether the room needs a freestanding bay, an architectural wall-to-wall finish, or a flexible multipurpose layout.

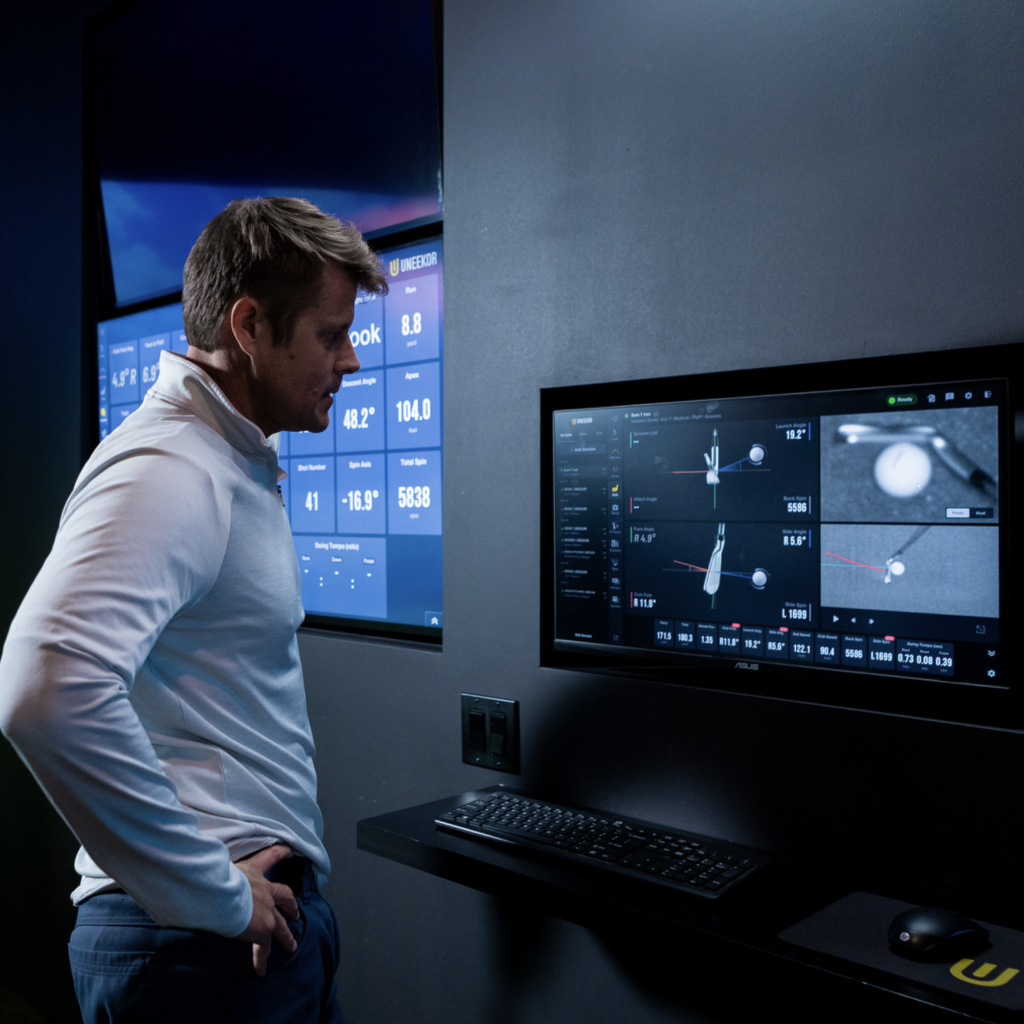

2. Launch monitor: select the tracking geometry first

A launch monitor measures some combination of ball and club behavior, but the way it observes a shot changes the room. There is no universally best category.

Review the current installation manual before framing, wiring, or cutting turf. Software compatibility, subscriptions, supported course libraries, measured data, marked-ball requirements, operating temperature, and update policies should also be verified at the time of purchase.

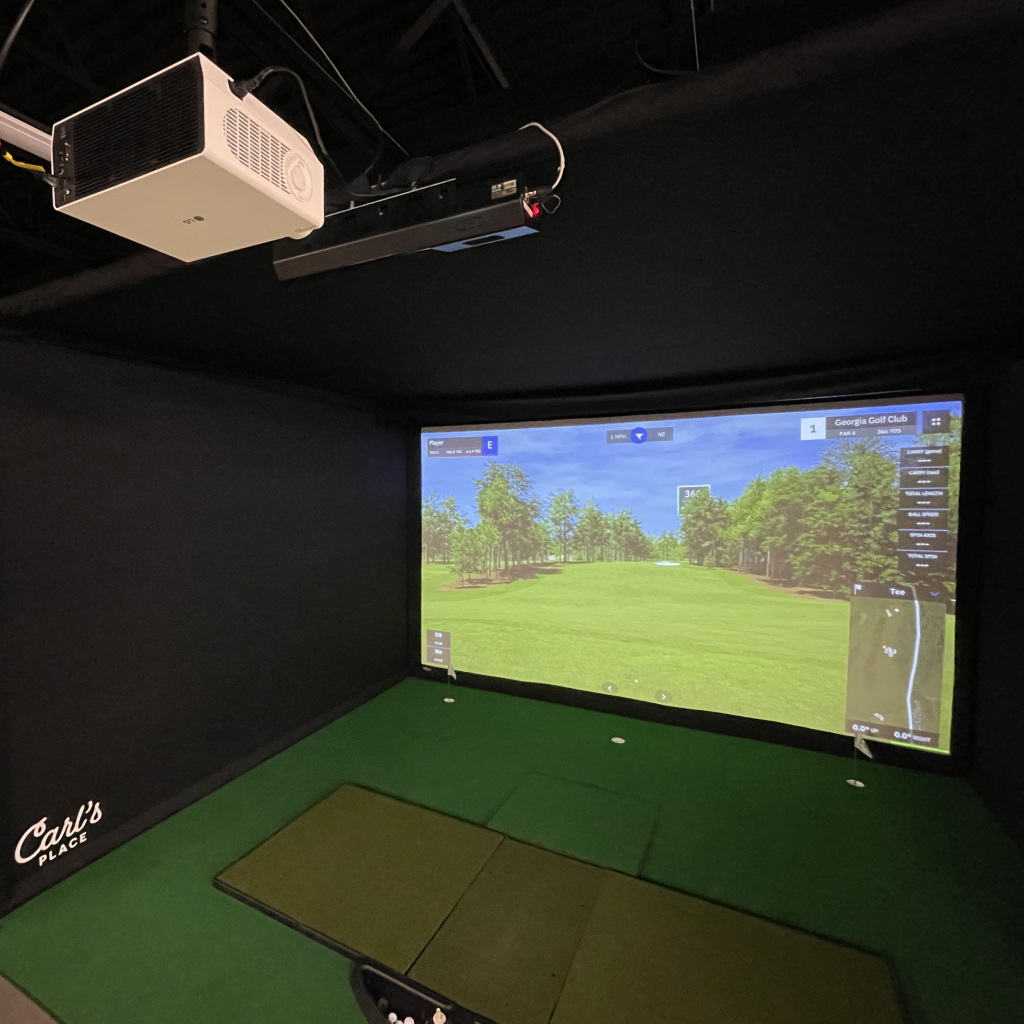

3. Golf simulator projector and image geometry

A projector should be selected after the viewable screen dimensions and hitting position are known. Its job is not merely to produce a bright image. It must fill the intended screen area from a safe location without casting the golfer’s shadow, entering the club path, conflicting with an overhead sensor, or placing equipment in a likely ball path.

Throw ratio is the relationship between throw distance and image width. When the projector uses its full native image width, the basic formula is:

Throw ratio = projector-to-screen distance ÷ image width

Golf simulator screens are frequently closer to 4:3, 16:10, or a custom shape than a standard 16:9 television image. When the projected aspect ratio differs from the projector’s native aspect ratio, the simple formula may not describe the usable image correctly. Use the manufacturer’s calculator and confirm image height, optical offset, lens shift, mounting height, and the resolution available after the image is fitted. BenQ’s simulator projection guide explains the relationship among screen size, throw distance, aspect ratio, and projector placement.

Brightness must be evaluated in the real room. Arizona daylight pouring through a garage door or side window can wash out even a capable projector. Shade the room and control task lighting before compensating with output alone. Resolution, contrast, laser versus lamp light source, input latency, optical flexibility, ventilation, and service access all matter.

4. Computer, software, and video transport

The simulator computer must meet the current requirements of the selected software and the intended resolution. Plan for graphics performance, storage, cooling, updates, keyboard and mouse access, and a serviceable path to the projector. Long video runs may require more than a consumer HDMI cable; the design should account for distance, bandwidth, connection type, and future replacement.

Keep the computer and other electronics away from direct ball impact, turf debris, and poorly ventilated cabinets. A nearby display can make setup and shot review easier without covering the main image. If the room will also show sports, movies, or gaming, define those sources and audio formats before the signal path is built.

5. Hitting mat, turf, and floor transitions

The hitting surface affects comfort, alignment, sensor accuracy, and the finished floor height. Select a replaceable hitting insert appropriate for the expected use, and make transitions flush enough to reduce trip hazards. The ball and launch monitor may need to sit at the same elevation. A radar unit placed on the concrete below a raised hitting mat, for example, may not meet its alignment guidance.

6. Lighting, audio, acoustics, and climate

Use separate smart lighting and scene-control zones for setup, play, cleanup, and social use. Place fixtures so they do not create screen glare, cast distracting shadows, interfere with optical tracking, or enter the swing path. Camera-based systems may have specific illumination requirements, so “make it dark for the projector” is not a complete lighting plan.

Golf impact is loud. Soft finishes, properly placed acoustic treatment, and a well-designed enclosure can reduce harsh reflections, but acoustic treatment is not the same as sound isolation. If bedrooms or neighbors are nearby, the wall, ceiling, door, and mechanical paths may require an acoustical assessment.

Audio can range from simple program sound to a more immersive system for sports and movies. Keep speakers, grilles, and controls out of common ball paths. Climate supply and return locations should serve players and electronics without disturbing the screen.

7. Network, power, and whole-room automation

Modern simulator software may require downloads, licensing checks, online competition, cloud services, or remote support. Use a reliable network design and, where practical, a wired connection for the simulator computer and fixed equipment. Camelback Smart Homes can coordinate the room with a professionally designed home network rather than relying on a weak garage Wi-Fi signal.

Permanent outlets, dedicated circuits where required, surge protection, equipment grounding, and code compliance belong in the electrical plan. Do not route extension cords inside walls or improvise power above an enclosure. Camelback Smart Homes’ electrical and lighting services can be coordinated with the technology plan; electrical work should always be completed by a qualified professional.

Once the individual systems are compatible, automation can make the room much easier to use. A “Play Golf” scene might prepare the climate, set the lighting, lower shades, power the display and audio path, and select the correct source. An “All Off” scene can shut down equipment in the proper order and return the room to an energy-conscious state. Exact integrations must be verified for the selected products; do not assume every launch monitor or computer can be fully controlled.

The right home golf simulator design and installation sequence

1. Define the experience. Identify the golfers, handedness, longest clubs, practice and entertainment goals, desired data, software, seating, and whether the room must serve other purposes.
2. Survey and swing-test the room. Measure finished surfaces and every obstruction. Photograph doors, windows, ceiling hardware, electrical service, mechanical systems, and possible network paths.
3. Select the system architecture. Choose the launch-monitor category, screen and enclosure approach, hitting position, aspect ratio, projector geometry, computer location, audio, and controls as one coordinated design.
4. Create drawings and specifications. Document dimensions, elevations, mounting points, power, low-voltage paths, blocking, ventilation, lighting zones, equipment access, and finish transitions.
5. Complete infrastructure and room preparation. Coordinate electrical, low-voltage wiring, network, HVAC, garage-door work, insulation, drywall, painting, and flooring before sensitive equipment arrives.
6. Install the enclosure and technology. Follow manufacturer tolerances for the screen, sensor, projector, and hitting surface. Protect equipment and maintain service access.
7. Calibrate and commission. Align the target line, verify image geometry and focus, update software and firmware, test shot detection, confirm audio and lighting, and validate both right- and left-handed use if required.
8. Train the household and document the system. Provide startup and shutdown instructions, maintenance guidance, account ownership, license information, and support contacts.

New construction versus a simulator retrofit

New construction offers the best opportunity to coordinate ceiling height, room width, blocking, conduit, equipment ventilation, acoustic assemblies, lighting locations, and screen backspace before drywall. The simulator integrator should be involved while architectural and electrical drawings can still change—not after the room has been framed around generic assumptions.

A retrofit can still produce an exceptional room, but the design must work with existing structure, door paths, mechanical systems, and finishes. A good retrofit survey identifies what can remain, where discreet access openings are justified, and which compromises would affect safety or performance. It also assigns responsibility for drywall, paint, HVAC, electrical, networking, and calibration before work begins.

What drives the scope of a home golf simulator project?

This article intentionally does not provide a one-size-fits-all price. A separate cost guide should compare current, dated ranges. For planning purposes, the largest scope drivers are:

• Room readiness: an existing conditioned bonus room is different from a garage needing door, insulation, HVAC, electrical, drywall, and flooring work.
• Tracking system: portable entry systems, fixed overhead units, and premium radar or hybrid platforms differ in equipment, mounting, software, and space requirements.
• Enclosure and finish: a standard freestanding enclosure differs from a custom wall-to-wall room with padded panels and architectural millwork.
• Image and computing: screen size, ambient light, projector resolution, optical flexibility, graphics hardware, and long-distance video transport affect the system design.
• Multipurpose use: seating, sports viewing, gaming, upgraded audio, lighting scenes, and automation add value but also require coordination.
• Infrastructure and service: network, power, ventilation, programming, commissioning, documentation, and ongoing support are part of a reliable system—not miscellaneous extras.

Nine common home golf simulator planning mistakes

1. Buying the enclosure before testing the swing. The biggest frame that fits the walls may not leave a comfortable swing.
2. Measuring to the highest ceiling point. The lowest opener, track, beam, light, sensor, or projector defines the usable envelope.
3. Selecting the launch monitor after framing. Tracking technology can change tee location, room depth, ceiling mounts, lighting, and handedness.
4. Using screen size as enclosure size. Viewable image, total screen, frame, fabric, fittings, and rear clearance are different measurements.
5. Choosing a projector by brightness alone. Throw ratio, aspect ratio, optical offset, shadows, mounting safety, resolution, and ambient-light control are equally important.
6. Ignoring left-handed players. A room designed for one handedness may require moving hardware or may not safely support the other.
7. Treating an Arizona garage as conditioned space. Heat, dust, sunlight, and ventilation can affect comfort and equipment.
8. Depending on a distant Wi-Fi router and loose extension cords. Fixed technology deserves planned network and permanent power infrastructure.
9. Hiding equipment without service access. Screens, projectors, computers, sensors, filters, cabling, and power devices eventually need maintenance.

Home golf simulator planning checklist

• Identify every intended golfer, handedness, height, and longest club.
• Measure the finished room and all ceiling, wall, floor, and door obstructions.
• Complete supervised full-swing tests from proposed hitting positions.
• Choose the launch-monitor category and verify the current installation manual.
• Confirm tee-to-screen, monitor-to-ball, and behind-screen clearances.
• Size the enclosure by its exact outside dimensions—not the listing name alone.
• Match viewable screen size, aspect ratio, throw ratio, projector offset, and mounting point.
• Plan padding and containment for errant shots and high-lofted clubs.
• Verify computer, graphics, software, licensing, and network requirements.
• Coordinate permanent electrical, low-voltage, lighting, audio, HVAC, and ventilation.
• For garages, address door hardware, daylight, insulation, dust, and equipment temperature limits.
• Document service access, calibration, maintenance, accounts, and shutdown procedures.

For more planning answers, visit the home golf simulator FAQ library or review the Camelback Smart Homes project gallery.

Frequently asked questions about home golf simulators

What is the minimum ceiling height for a home golf simulator?

There is no safe universal minimum. Carl’s Place describes 8–9 feet as a limited range dependent on the golfer, club, and swing, while 10 feet or more is the more comfortable planning benchmark. Measure from the finished hitting surface to the lowest obstruction and complete a full-swing test. Overhead launch monitors may impose an additional mounting-height requirement.

Can a golf simulator fit in a garage?

Yes, many garages can support a simulator, but the garage must pass the same swing, equipment, and safe-use tests as an interior room. In Arizona, also plan for garage-door tracks and openers, heat, dust, direct sunlight, HVAC, permanent power, and reliable networking.

How far should the ball be from the impact screen?

The correct distance comes from the screen, enclosure, and launch-monitor instructions. Carl’s Place generally recommends at least 10–12 feet for many enclosure layouts, while some specific launch monitors publish different minimum ball-flight distances. Do not combine unrelated minimums; design to the exact set of components.

Can one golf simulator work for right- and left-handed players?

Yes, if the room is wide enough and the launch-monitor layout supports both. A centered hitting position is usually easier. Some floor-mounted units must be moved between players, while some rear or overhead systems can support a shared hitting zone. Verify the exact model and test both swing envelopes.

Do I need a short-throw golf simulator projector?

Many rooms benefit from a short-throw projector because it can fill a large screen while staying near the hitting area, which helps reduce shadows. The correct lens still depends on image width, aspect ratio, throw distance, optical offset, mounting height, and conflicts with the golfer or launch monitor. Calculate the geometry for the exact projector.

Does a home golf simulator need internet access?

Not every function requires continuous internet, but software downloads, licenses, course libraries, online play, cloud features, updates, and remote service often do. A reliable home network—and preferably a wired connection for fixed equipment—reduces avoidable interruptions.

Can a golf simulator room also be a home theater or sports room?

Yes, but multipurpose use should be designed from the beginning. Seating sightlines, audio, source switching, image aspect ratios, light control, screen protection, and safe circulation all change when the room serves more than golf. Whole-room automation can make switching between modes much simpler.
